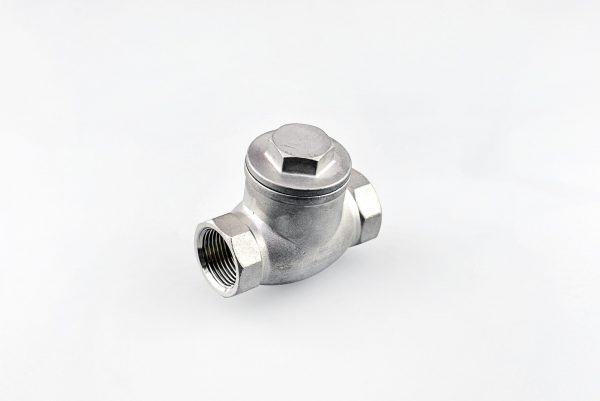

Stainless Steel Swing Check Valve

A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow. The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.

Clear
Add to QuoteClear Selection Continue Shopping
SKU: THS_6WJOMW Categories: ,

Description

Specification:

Thread: BSP Female

Application: Industries such as refining, petrochemical, chemical, oilfield production, water and steam. Swing Check valves are also commonly found in waste-water management systems and in manufacturing

Working Temperature: 180°C

Maximum Working Pressure: 200 PSI

Material Chart

PARTMATERIAL
BodyASTM A351 CF8M
DiscASTM A351 CF8M
DowelASTM A276 316
GasketPTFE
BonnetASTM A351 CF8M
WasherPTFE
Bolt316





Additional information

Part Number

VSSSW12, VSSSW34, VSSSW1, VSSSW114, VSSSW112, VSSSW2, VSSSW212, VSSSW3

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3"
