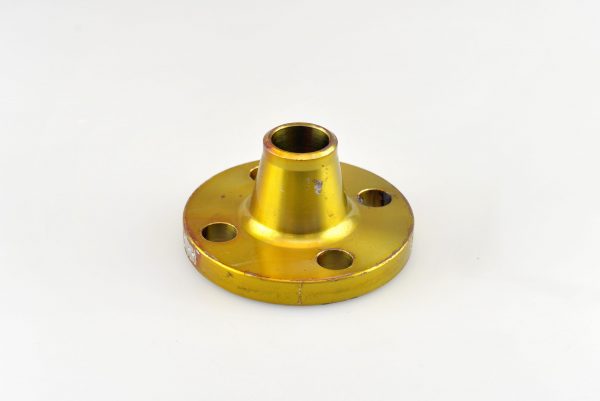

Carbon Steel Ansi 150 Weld Neck Flange

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed.

Clear
Add to QuoteClear Selection Continue Shopping
SKU: THS_H9YAF7 Categories: , ,

Description

Specification:

Application: Water supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, Construction and General Industrial Applications

Material: Mild Carbon Steel

ANSI B16.5  – Pipe Flanges and Flanged Fittings (American)

AS2129 – Flanges for Pipes, Valves and Fittings (Australian)

BS4504 – Circular Flanges for Pipe, Valves and Fittings (PN designated) – (now BS EN1092) (European)

AS4087 – Metallic Flanges and Waterworks Purposes  (Australian)

BS10 – Specifications for Flanges and bolting for Pipes, Valves and Fittings (British)

#AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes bolt holes are slightly larger to give better clearance.

Additional information

Part Number

SBANSIWNF15, SBANSIWNF20, SBANSIWNF25, SBANSIWNF32, SBANSIWNF40, SBANSIWNF50, SBANSIWNF65, SBANSIWNF80, SBANSIWNF100, SBANSIWNF125, SBANSIWNF150, SBANSIWNF200, SBANSIWNF250, SBANSIWNF300

Size

15MM, 20MM, 25MM, 32MM, 40MM, 50MM, 65MM, 80MM, 100MM, 125MM, 150MM, 200MM, 250MM, 300MM
